How to Choose and Adjust LED Display Brightness

Brightness - An Important Parameter in LED Screen

Precision Brightness Control: Maximizing LED Display Performance in Any Environment

Brightness: The Critical Performance Factor in LED Displays

LED displays have become ubiquitous across diverse applications, from indoor LED video walls to outdoor LED digital signage. Among the key technical parameters determining LED display performance, brightness (measured in nits or cd/m²) stands out as the most critical.

Why Brightness Matters:

  • Low-Light Conditions: Excessive brightness in dark environments (e.g., a smartphone in a dim room) causes discomfort and reduces readability.
  • High-Ambient Light: In bright settings (e.g., direct sunlight at a stadium), insufficient brightness leads to poor visibility, negating other LED display advantages like ruggedness or resolution.

An LED display’s brightness capability directly impacts its effectiveness—whether ensuring clarity in indoor settings or maintaining visibility under intense outdoor lighting. Thus, optimal brightness calibration is essential for performance across all operating environments.

Contact Now

Understanding Brightness: Lumens vs. Nits (CD/m²) – What You Need to Know

When selecting an LED display, brightness is a critical factor – but the technical terms can be confusing. Let’s break it down simply:

Nits (CD/m²) – The Standard for LED Display Brightness

1. 1 Nit = 1 CD/m² (Candelas per Square Meter).

2. Measures actual perceived brightness of all emissive displays (LED/LCD/OLED screens).

3. Key factors affecting nit measurement:

  • LED density (pixels per unit area)
  • Pixel pitch (center-to-center distance between LEDs)
  • Individual LED luminous intensity
  • Optical characteristics of LED display surface

4. Represents peak white brightness under full hardware/software capability.

Lumens – For Projected Light Sources

1. Measures total visible light output from a source (e.g., projectors, lighting fixtures, and flashlights).

2. Physics definition: Total flux emitted by 1 candela over 1 steradian solid angle.

3. Brightness decreases with distance (light spreads over larger areas).

Why Nits Matter for LED Displays?

Unlike lumens, nits directly reflect real-world visibility:

  • Ensures readability in sunlight (5,000+ nits for outdoor LED displays)
  • Prevents eye strain in dark environments (300-1,500 nits for indoor LED Video Wall)
  • Standardized metric for comparing LED display performance

Pro Tip: Always check nits (not lumens) when evaluating LED screens – it’s the true measure of how bright your content will appear!

Optimal Brightness Settings for Maximum LED Display Performance

Choosing the right brightness level is crucial for both performance and longevity of your LED display. Here's our professional recommendation:

Indoor LED Displays

1. Optimal operating range: 800-1,200 nits (cd/m²).

2. Benefits of proper brightness:

  • Matches typical indoor ambient light conditions (100-500 lux)
  • Comfortable viewing experience
  • Maintains comfortable human visual perception (photopic vision range)
  • Ensures proper gray scale performance and color uniformity
  • Energy efficiency

Outdoor LED Displays

1. Recommended range: 4,000-10,000 nits (cd/m²).

2. Smart brightness advantages:

  • Designed for high ambient illumination (50,000-100,000 lux in direct sunlight)
  • Perfect visibility in sunlight
  • Automatic ambient light adaptation
  • Balanced performance and durability
  • Incorporates high-brightness LED chips with enhanced thermal management
  • Includes anti-glare and anti-reflective surface treatments

Why You Shouldn't Overdrive Your LED Display

Pushing brightness beyond manufacturer specifications (e.g., setting 7,000 nits on a 5,000 nits LED display) may cause:

  • Accelerated 30-50% faster LED degradation (non-linear increase in junction temperature)
  • Significant lifespan reduction
  • Reduced MTBF (Mean Time Between Failures) by 40-60%
  • Increased failure rates
  • Compromised thermal performance (exceeding designed heat dissipation capacity)
  • Potential damage to driver ICs and power supply systems
  • Higher maintenance costs
Contact Now

Smart Brightness Control for Indoor LED Displays

Recommended Brightness Range: 800-1,200 nits (ideal for comfortable viewing and energy efficiency)

Two Ways to Adjust Brightness:

1. Manual Brightness Control

  • Easily adjust brightness via user-friendly software
  • Perfect for fixed lighting conditions or specific content requirements
  • Adjustable in 1% increments (typical)
  • Supports gamma correction for consistent grayscale performance
  • Preserves color accuracy across brightness levels

2. Automatic Brightness Control (Recommended)

2.1 Scheduled Brightness Adjustment

  • Set brightness levels by time of day (e.g., lower at night, brighter during daytime)
  • Supports multiple preset configurations
  • Smooth transition between brightness levels
  • Saves energy while maintaining optimal visibility

2.2 Ambient Light Sensor Integration (Recommended Configuration)

  • High-precision photometric sensor (0-100,000 lux range)
  • Closed-loop feedback control system
  • Configurable response time (typically 2-5 seconds)
  • Automatically adapts to ambient light conditions
  • Ensures perfect visibility while reducing power consumption
  • Provides consistent viewing comfort without manual adjustments

Why Choose Automatic Adjustment?

  • Energy Savings – Lowers brightness when full intensity isn’t needed
  • Viewer Comfort – Prevents eye strain in dark environments
  • Smart & Hands-Free – No need for constant manual tweaking

Upgrade your display with an auto-dimming light sensor for the best viewing experience!

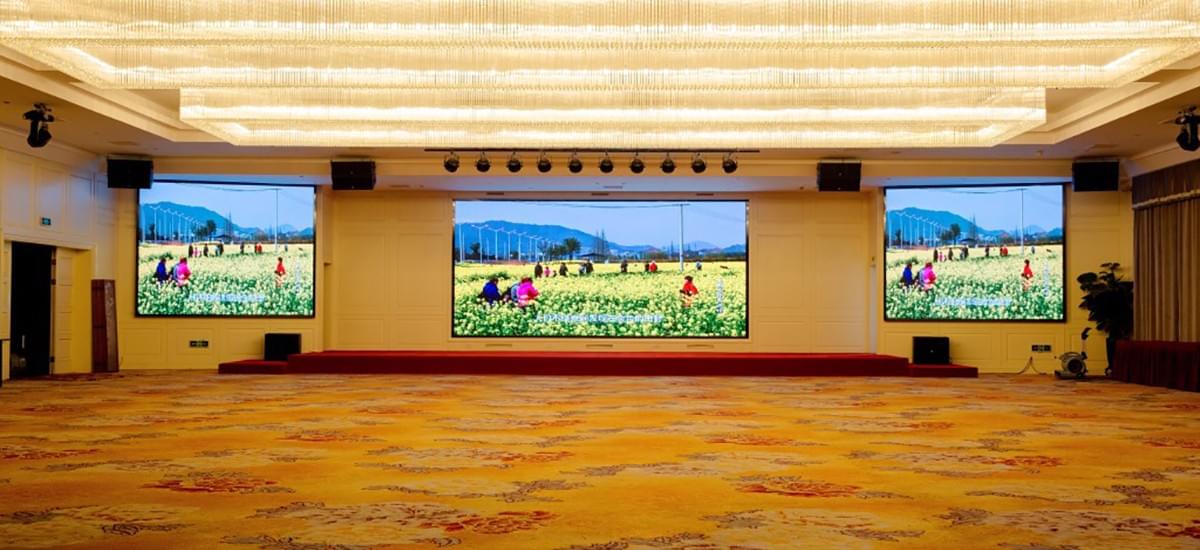

High Refresh Rate Indoor LED Display

Smart Brightness Control for Outdoor LED Displays

Optimal Brightness Range: 4,000-10,000 nits (Perfectly balanced for sunlight visibility and energy efficiency)

Two Simple Ways to Control Brightness

1. Manual Brightness Adjustment

  • Easy software control - Instantly adjust to your preferred level
  • Full flexibility - Perfect for special events or specific content requirements
  • Precise calibration - Adjustable in 1-5% increments
  • Maintains color consistency - Supports gamma correction for consistent grayscale performance

2. Automatic Brightness (Recommended)

2.1 Scheduled Brightness Profiles

  • Programmable 24/7 brightness curves
  • Smooth transition algorithms (≤10% brightness change per second)
  • Multiple preset configurations for different scenarios
  • Save energy during off-peak hours automatically

2.2 Ambient Light Sensor System (Recommended)

  • High-accuracy photometric sensor - 0-150,000 lux range
  • Smart auto-dimming - Instantly responds to weather/sunlight changes
  • Real-time closed-loop feedback - 1-3 second response time
  • Energy saver - Reduces power costs by up to 60%
  • Extends LED lifespan - Preventing unnecessary high-brightness operation
  • Always perfect visibility - No more washed-out or glaring screens

Need Help?

  • Download our complete Software Guide for detailed instructions
  • Contact our support team for personalized setup assistance

Upgrade to automatic brightness today for smarter, more efficient outdoor LED displays!

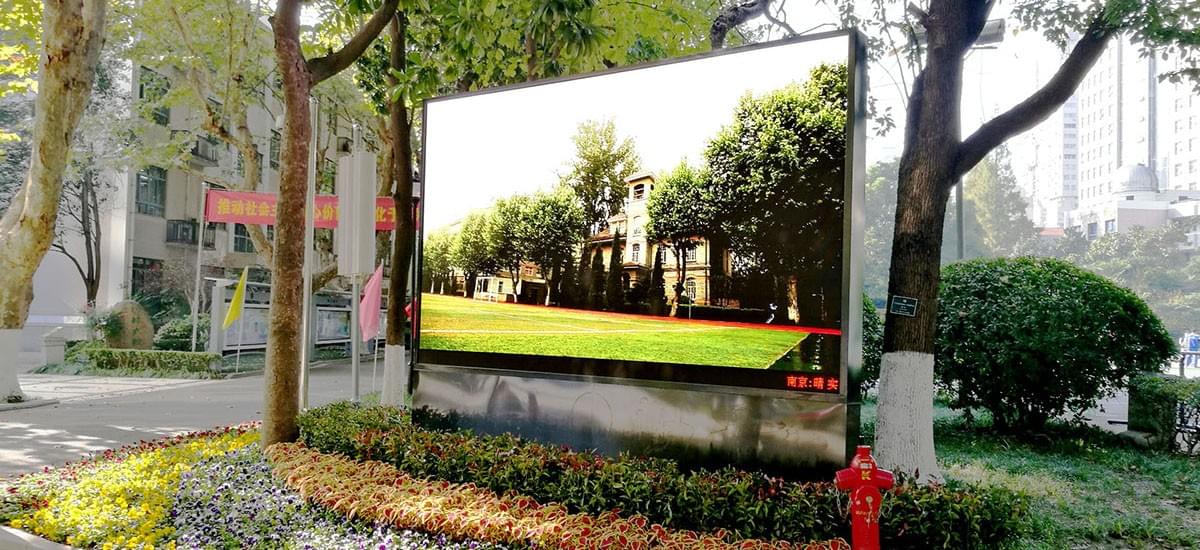

High Brightness Outdoor LED Display
Contact Now

Technical Considerations for LED Display Brightness Optimization

For Indoor LED Displays

To ensure perfect visibility and viewer comfort, consider these critical elements:

1. Ambient Lighting Conditions

  • Artificial Lights: Bright office lighting or spotlights may require higher LED display brightness (800-1,200 nits)
  • Natural Sunlight: Sunlight through windows can cause glare - adjust brightness or use curtains
  • Smart Solution: Install light sensors for automatic brightness adjustment

2. Viewing Environment

  • Viewing distance and angles
  • Darker environments (theaters, control rooms) need lower brightness (300-800 nits)
  • Brighter spaces (retail stores, lobbies) require higher brightness

Pro Tip: Use our auto-dimming technology to maintain optimal brightness 24/7 while saving energy!

For Outdoor LED Displays

Maximize visibility and durability with these considerations:

1. Sunlight Intensity & Duration

  • Direct Sunlight: Requires maximum brightness (5,000-10,000 nits) during peak daylight
  • Cloudy/Evening: Lower brightness preserves LED lifespan
  • Sun Position: East/West-facing LED screens need higher brightness at different times

2. Content Readability

  • Higher brightness ensures visibility but stay within 10,000 nits limit
  • Automatic brightness adjustment maintains perfect visibility day/night

Pro Tip: Our outdoor LED displays feature smart sunlight-read sensors that auto-adjust for maximum impact while protecting your investment!

Contact Now

Optimizing Outdoor LED Display Brightness for Maximum Visibility

Smart Brightness Adjustment for Different Daylight Conditions

Ensure your content always looks crisp and vibrant, no matter the time of day, with these professional brightness recommendations:

1. Shaded Areas (No Direct Sunlight)

Recommended Brightness: 4,000–5,000 nits

Why It Works:

  • Perfect clarity without overpowering viewers
  • Energy-efficient operation
  • Ideal for early mornings/late afternoons or covered locations

2. Sunrise/Sunset Conditions

Recommended Brightness: 5,000–6,500 nits

Why It Works:

  • Counters the golden-hour glow
  • Maintains vivid colors as ambient light changes
  • Balanced visibility as day transitions to night

3. Midday Direct Sunlight

Recommended Brightness: 6,500–10,000 nits

Why It Works:

  • Combats the strongest sunlight (100,000+ lux)
  • Ensures readability from all angles
  • Keeps content vibrant even in harsh conditions
  • Incorporates thermal derating for chip longevity

Pro Tip: Our outdoor LED displays feature auto-adjusting brightness technology that seamlessly adapts to changing light conditions - guaranteeing perfect visibility 24/7 while optimizing energy use!

Low Brightness LED Display and High Brightness LED Screen

Achieve perfect LED display performance by mastering brightness control - too high causes glare and energy waste while too low reduces visibility, but with our expert guidance on optimal brightness settings tailored to your specific environment, you'll maximize impact, extend display life, and boost energy efficiency for stunning visuals that captivate audiences day and night!

Contact Now

Why choose our company?

Our company specializes in providing high quality LED displays that offer the best image quality, vivid color reproduction, and clarity. With our competitive pricing and exceptional customer service, we are dedicated to delivering reliable and innovative display solutions to meet all of your needs. Choose us for the ultimate LED display experience. Let us help you communicate your message dynamically and powerfully, leaving a lasting impression on your audience.
