LED screens have emerged as a dominant and pervasive presence in urban landscapes, driven by their visual appeal and extensive market accessibility. Research shows that dynamic content displayed on LED video walls gets 400% more views than traditional billboards. However, a crucial prerequisite is that LED screen installation must be executed properly, and the content must offer real value to captivate the audience's interest. The vivid, dynamic imagery these LED displays produce is often enough to make passersby stop in their tracks.
Unlike consumer-grade LED TVs, which require minimal setup—just plug in and power on—outdoor LED displays demand meticulous installation and configuration. This complexity often leads businesses to rely on experienced professionals for flawless execution. Yet, for those eager to take on the challenge themselves, a structured LED screen installation guide can provide step-by-step support, demystifying the process and empowering DIY efforts.
Here, we outline a streamlined installation method for outdoor LED displays on concrete walls, designed to deliver a secure and efficient setup while safeguarding LED panel integrity and maximizing performance.
Step 1: Site Survey & Environmental Assessment
Prior to installation, perform a comprehensive site survey to evaluate environmental conditions, available space for the steel support structure, and the building's load-bearing capacity. Ensure the site can safely accommodate the weight and dimensions of the LED display.
Structural Suitability:
- Ensure the building's load-bearing capacity can safely support the LED display's weight and dimensions, with adequate space for the steel support structure.
Environmental Conditions:
- Topography and site accessibility
- Rainfall and storm frequency
- Temperature range (maximum and minimum)
- Wind force intensity (maximum and minimum)
- Ambient light levels
- Potential obstructions (e.g., trees, adjacent buildings)
Infrastructure Readiness:
- Verify power supply availability and network connectivity for content updates.
Step 2: Construct the Support Frame Based on Measurements
After finalizing the site survey and selecting the optimal location for the LED screen, proceed to build the support frame using the precise measurements obtained.
Frame Construction Guidelines
Material Selection: Use 4×4 cm or 4×8 cm rectangular steel tubes for the primary structural components.
Assembly Process: Weld the components together to create a rigid frame capable of supporting the weight of the LED cabinets. Ensure the frame is level and securely anchored to withstand environmental loads (e.g., wind, rain).
Maintenance Accessibility:

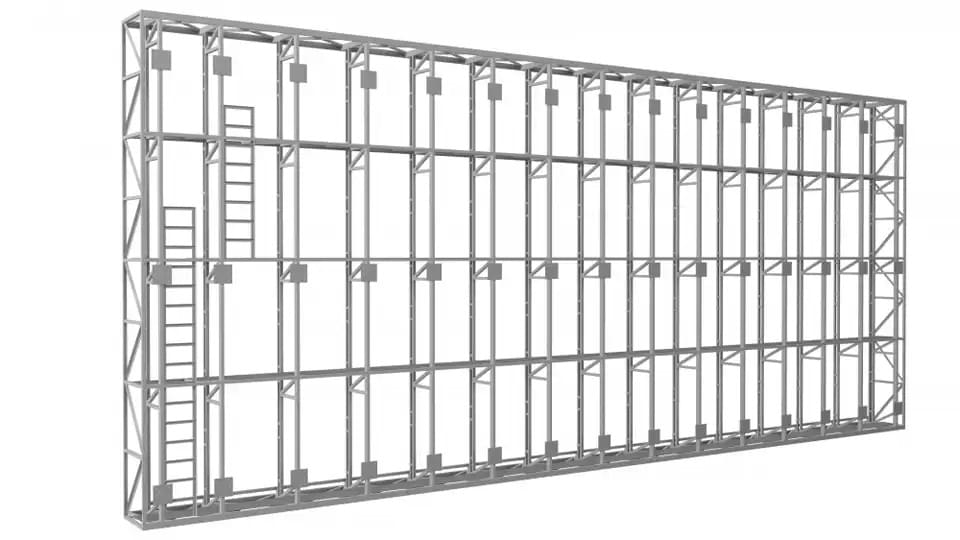

- Rear Service Design: If the installation includes rear access, incorporate maintenance channels of 600–900 mm width within the frame to allow technicians to easily reach and repair components from the back.
- Front Service Design: For front-serviceable LED displays, a dedicated maintenance room at the rear is not required. Instead, prioritize front access features in the frame design.
Step 3: Prepare Materials and Equipment
After the steel frame installation is complete, proceed to gather all components required for the installation. Ensure the following materials and tools have arrived on site before construction begins to avoid delays:
LED Display Components:
- LED screen cabinets
- Power cable
- Data network cable
- USB control cable
- DVI/HDMI/VGA video cables
Tools & Equipment:
- Spanner (wrench)
- Laptop (for configuration)
- LED controller or video processor
- Fasteners (nuts, screws, etc.)
Safety Gear:
- Hard hats
- Safety harnesses
Step 4: Unpack and Handle the LED Cabinets with Care
After the steel support structure is securely installed, proceed to unpack the LED display cabinets with meticulous care to safeguard the delicate LED panel components.
Key Guidelines:
- Team Coordination: Assign at least two personnel to assist during unpacking to minimize handling risks and ensure panel integrity.
- Avoid Physical Damage: Never drag or impact the LED cabinet frames, as this may cause scratches or internal component harm.
- Corner Protection: Pay special attention to the LEDs at the corners and edges of each frame—these areas are highly susceptible to impact-related damage.

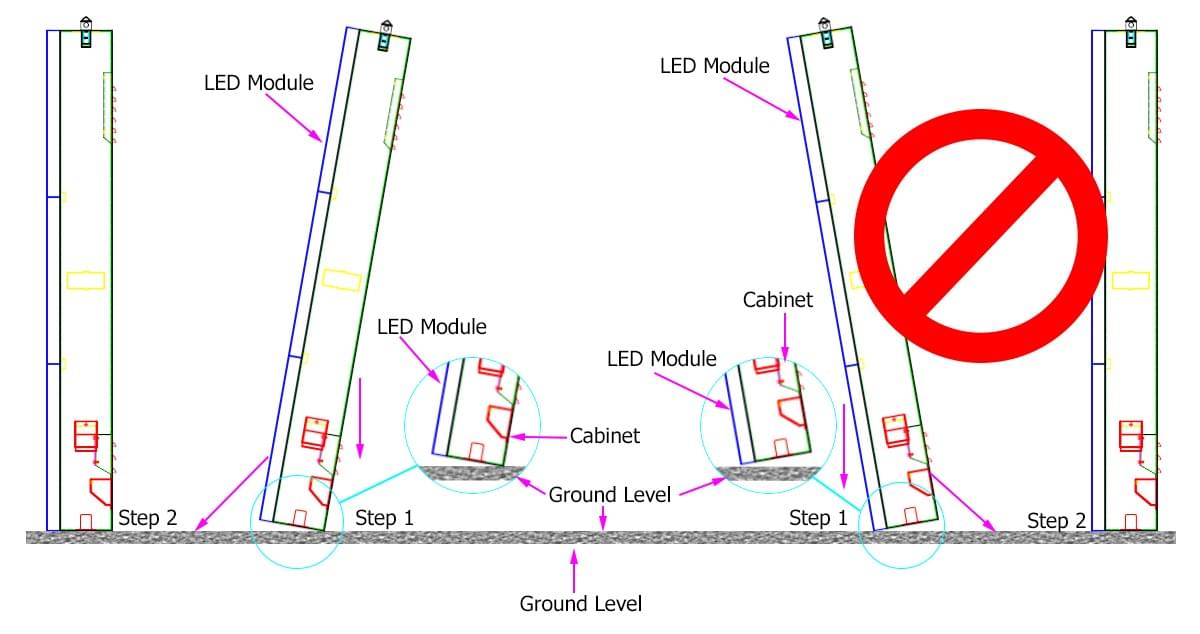

- Proper Placement: When positioning the LED panel, always contact the ground with the back side of LED panel first. This method prevents stress on the lower LEDs and reduces the risk of handling-induced defects.
Step 5: Mounting LED Panels onto the Support Structure
After unpacking the LED cabinets, proceed with the installation of the LED display panels. Follow these sequential steps to ensure precise alignment and structural integrity:

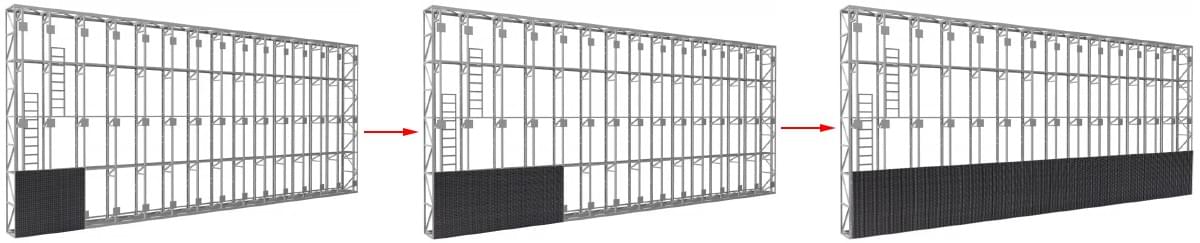

1. Bottom Row Installation:
Beginning: mounting the leftmost LED panel in the bottom row of the steel support structure.
Bolt the Cabinets: Use M10 x 60mm bolts pass through the connecting plate and the rectangular tube to fasten each LED cabinet to the frame at all connection points.
Evenly Distribute Bolts: Tighten bolts evenly across all connection points to avoid stress and ensure stability.
Next: Proceed to install adjacent LED panels one by one until the entire bottom row is completed.
Inspect Connections: Check each LED cabinet to confirm that all connections are secure and that there are no gaps between the units.

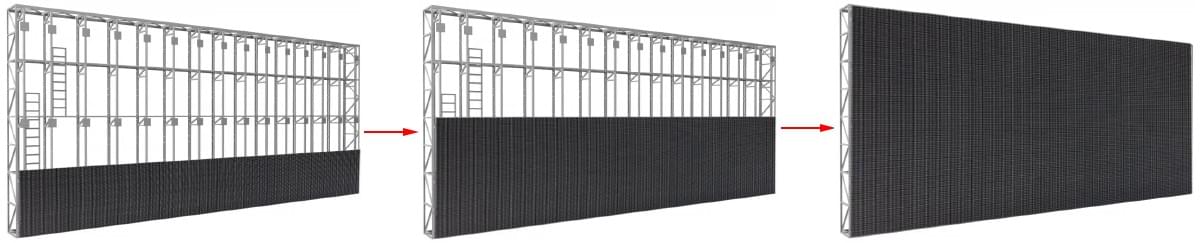

2. Upper Rows Installation:
Move to the second row and repeat the mounting process, ensuring each LED panel is aligned with its neighbors and securely fastened.
Continue this pattern for subsequent rows (third, fourth, etc.) until all LED panels are installed.
3. Alignment & Spacing:
Maintain consistent spacing between LED panels throughout the installation to achieve a seamless LED display surface.
Verify alignment at each stage to prevent gaps or misalignment that could affect visual quality.

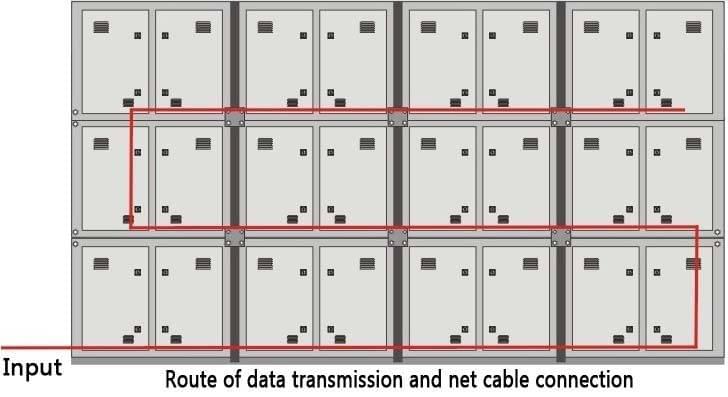

Step 6: Signal Cable Connection
After the LED cabinets are installed, proceed to connect the signal cable from the control hardware to each LED panel. This step is critical for ensuring seamless transmission of content (video, text, images, etc.) from the control system to the LED display cabinets.
Connection Process
- Connect the laptop (acting as the video signal source) to the LED controller using the appropriate signal cable (e.g., HDMI, DVI, or Ethernet).
- Link the controller's output port to the input port of the first LED cabinet via Ethernet cables.
- Once the first cabinet is connected, please connect the output port of each cabinet to the input port of the next unit.
- Repeat this process until all LED cabinets in the installation are linked.
Key Considerations
Pixel Loading Capacity:
- Each output port of the LED controller has a maximum pixel pitch loading capacity (defined by its Max pixel width and Max pixel height).
- Ensure the total pixel pitch of LED cabinets connected in series does not exceed this limit to prevent signal degradation or failure.
Step 7: AC Power Cable Connection
After completing the signal cable connections, proceed to link the AC power cable to all LED display cabinets.
Power Connector Identification
- Locate the two power connector ports on the rear of each LED cabinet. Typically labeled as POWER IN (for primary power input) and POWER OUT (for daisy-chaining additional cabinets).
- Note: Some LED cabinets may use unlabeled ports; consult the manufacturer’s documentation if identifiers are unclear.
Power Distribution Setup
1. Initial Connection:
Connect the AC power cable from the power distribution box to the POWER IN port of the first LED cabinet in the series.
2. Daisy-Chaining:
Use the POWER OUT port of the first LED cabinet to link to the POWER IN port of the next unit.
Repeat this process for all subsequent LED cabinets until the entire array is powered.
Post-Connection Verification
Before powering on the system, perform a thorough inspection of all connections to ensure:
- Cables are securely fastened and free from damage.
- Polarity and phase alignment are correct (if applicable).
- No exposed wiring or short-circuit risks exist.
Confirm compliance with local electrical safety standards.
Step 8: Post-Installation Inspection
After completing the outdoor LED display installation, conduct a comprehensive inspection to verify the system is fully operational. Key areas to evaluate include:
Environmental Suitability:
- Confirm the LED display is windproof and waterproof as per site requirements.
- Check for any environmental anomalies (e.g., moisture ingress, structural exposure to elements).
Structural Integrity:
- Inspect the steel support framework for stability—ensure all connections are secure and free from looseness.
Cable Safety:
- Verify all power and signal cables are properly routed, insulated, and protected against physical damage.
Final Verification:
- Once all checks are passed, the outdoor LED display installation is complete and ready for use.
Your Outdoor LED Display is Now Ready to Shine!
By following these step-by-step installation guidelines—from site survey and material preparation to frame construction, LED panel mounting, and final testing—you’ve ensured your outdoor LED display will deliver vibrant visuals and withstand environmental challenges. Remember, meticulous planning, proper alignment, and adherence to safety protocols are the pillars of a successful installation. Whether you’re a professional installer or a DIY enthusiast, this comprehensive approach guarantees durability, performance, and peace of mind.
Now, sit back and enjoy your high-impact LED digital billboard—it’s time to captivate audiences and make your content stand out under any conditions!
