Indoor LED Display Installation Guide for Concrete Walls
Indoor LED displays are currently widely used. Each indoor LED display application and installation environment are different, some are concrete walls, some are plasterboard walls, some are glass walls, some are steel walls, and some are marble walls. It is the easiest to install the indoor display screen on the concrete wall. The concrete wall has strong load-bearing capacity, and the most important thing is that the wall can fix the expansion screw. After the steel structure of LED display is finished, the expansion screw can be used to lock it on the wall.
Let us introduce one of the installation methods of indoor LED displays on a concrete wall briefly. This method ensures a secure and efficient setup, minimizing the risk of damage to the LED panels and ensuring optimal performance.

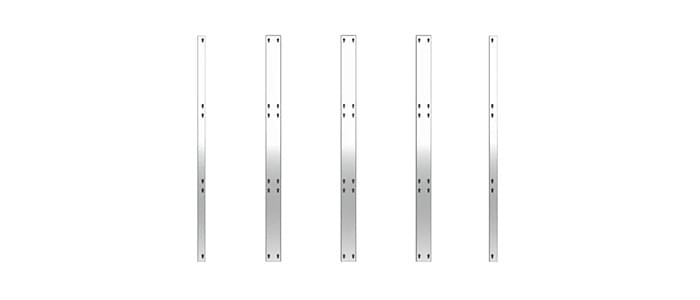

Step 1: Build the Iron Structure on Wall.
The first step involves constructing a sturdy iron structure on the concrete wall. This structure serves as the foundation for mounting the LED display. It is crucial to ensure that the iron structure is firmly fixed to the wall, as it must support the weight of the entire LED screen. The design and installation of the structure should align with the specific requirements of the LED screen project, including dimensions, weight distribution, and load-bearing capacity. Proper alignment and leveling of the structure are essential to avoid any issues during the panel installation process.

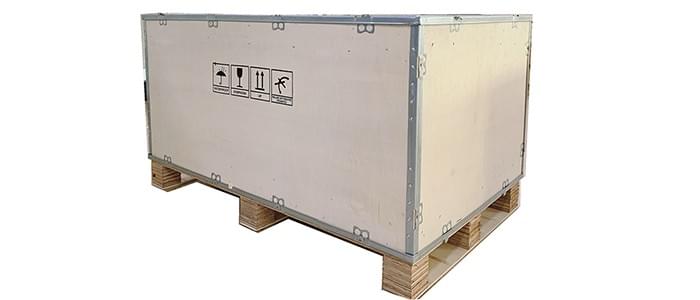

Step 2: Unpack and Take Out the LED Display Panels Carefully.
Once the iron structure is in place, the next step is to unpack the LED display cabinets. This step requires extreme care to prevent any damage to the delicate components of the LED panels. It is recommended to have at least two or more people handle the unpacking process to ensure the safety of the panels. Avoid dragging or hitting the frames, as this could cause scratches or other damage to the screen.

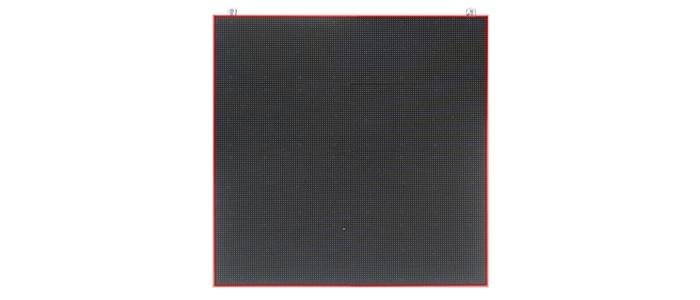

Special attention should be paid to the LEDs on the corners and sides of each cabinet, as these areas are particularly vulnerable to impact. Therefore, we must avoid any blow in those areas (The red line in below picture.).

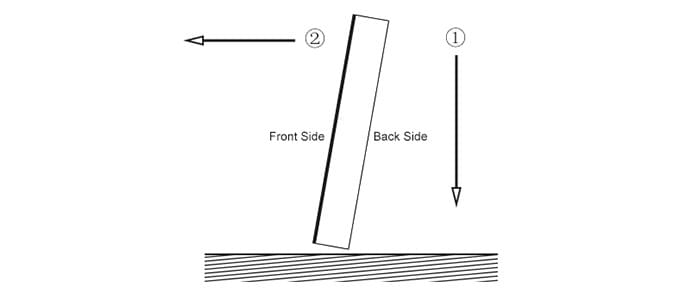

When placing the cabinet on any surface, always ensure that the back side of the cabinet makes contact with the ground first. This precaution helps protect the lower LEDs from potential damage caused by improper handling.
Step 3: Fix the LED Display Panels on Structure.

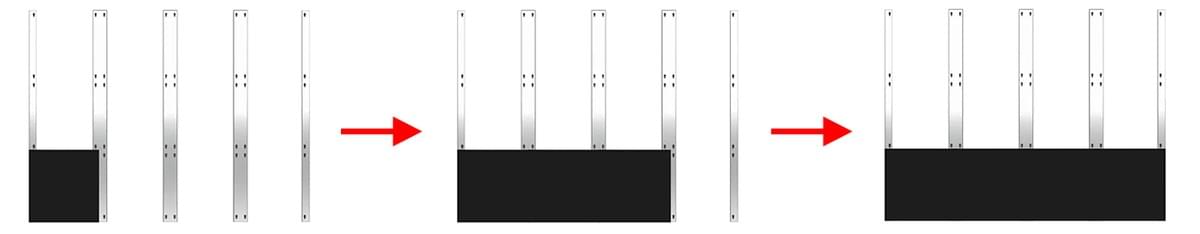

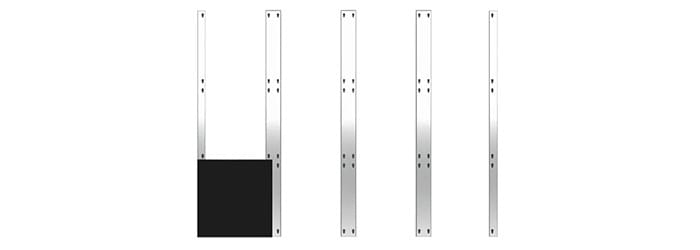

With the cabinets unpacked, the installation of the LED display panels can begin. Start by mounting the leftmost panel in the bottom row of the iron structure. Secure it firmly to ensure stability.

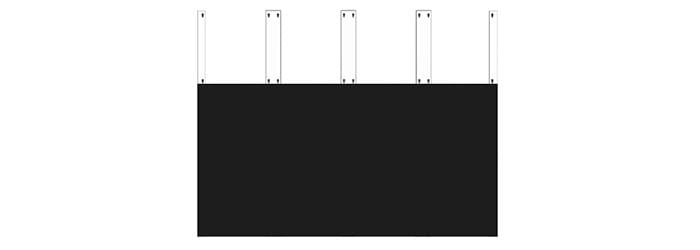

Once the first panel is in place, proceed to install the second panel adjacent to it, followed by the third, and so on, until the entire bottom row is complete.
Next, move to the second row and repeat the process, ensuring each panel is aligned correctly and securely fastened.

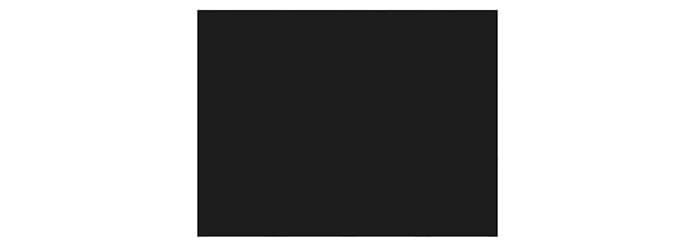

Continue this pattern for the third row, fourth row, and so on, until all the LED display panels are installed. It is important to maintain consistent spacing and alignment between the panels to achieve a seamless display surface.
Step 4: Connect Cables.
After all the panels are securely mounted, the next step is to connect the necessary cables. Begin by connecting the signal cables from the computer to each panel. These cables transmit the display data and ensure that the content is properly rendered on the screen. Next, connect the power cables from the power source to each panel. Proper cable management is essential to avoid tangling and ensure a clean, organized setup.
Once all the connections are made, power on the LED screen and test its functionality. Check for any issues such as dead pixels, color inconsistencies, or signal interruptions. If everything is working correctly, the installation process is complete, and the LED display is ready for use.
By following these steps carefully, you can ensure a successful installation of an indoor LED display on a concrete wall, resulting in a high-quality visual experience for your audience.
This is the brief introduction about installation of indoor LED display. Do you still have questions about your LED screen projects? Contact now, we will get in touch soon.
